Trek Top Fuel 9.9 XTR

Trek Top Fuel 9.9 XTR
  • Color: Satin Baja Yellow
$9,549.99
Color: Satin Baja Yellow
Size: Medium/Large
Wheel Size: 29-inch
Please select options Unavailable

Details

Top Fuel 9.9 XTR is a top-shelf full suspension mountain bike for riders who are serious about their fun. Its lightweight carbon frame is spec'd to the hilt with high-end suspension and high-performance parts. And all those fancy bits and bobs are really, really good at hitting the party line.

- The OCLV Carbon RSL integrated bar/stem is ultralight, ultra-comfortable, and it looks awesome
- Wider Line Pro 30 wheels provide better tire support so you can run lower pressure and get more traction
- This bike’s killer suspension setup is both efficient and ready to party
- A sleek internal storage compartment gives you a versatile spot to stow tools and gear
- Make it yours: it's fully customizable through Project One

Geometry Chart:
Frame size number15.5"15.5"17.5"17.5"18.5"18.5"19.5"19.5"21.5"21.5"
Frame size letter S S M M ML ML L L XL XL
Geometry position High Low High Low High Low High Low High Low
Wheel size 29" 29" 29" 29" 29" 29" 29" 29" 29" 29"
A — Seat tube 39.5 39.5 42 42 43.5 43.5 45 45 50 50
B — Seat tube angle 69.9° 69.5° 69.9° 69.5° 69.9° 69.5° 69.9° 69.6° 69.9° 69.6°
Effective seat tube angle 75.9° 75.5° 75.9° 75.5° 75.9° 75.5° 75.9° 75.6° 75.9° 75.6°
C — Head tube length 10 10 10 10 10.5 10.5 11 11 12.5 12.5
D — Head angle 65.9° 65.5° 65.9° 65.5° 65.9° 65.5° 65.9° 65.6° 65.9° 65.6°
E — Effective top tube 56.9 57 59.9 60 61.5 61.6 63.1 63.2 65.4 65.5
F — Bottom bracket height 34.6 34.1 34.6 34.1 34.6 34.1 34.6 34.1 34.6 34.1
G — Bottom bracket drop 2.7 3.2 2.7 3.3 2.7 3.3 2.7 3.3 2.7 3.3
H — Chainstay length 43.4 43.5 43.4 43.5 43.4 43.5 43.4 43.5 43.4 43.5
I — Offset 4.3 4.3 4.3 4.3 4.3 4.3 4.3 4.3 4.3 4.3
J — Trail 12 12.3 12 12.3 12 12.3 12 12.3 12 12.3
K — Wheelbase 115.3 115.4 118.3 118.4 120 120.1 121.7 121.8 124.4 124.4
L — Standover 72.4 71.9 74.4 73.9 74.9 74.4 75.4 74.9 76.4 75.9
M — Frame reach 41.9 41.5 44.9 44.5 46.4 46 47.9 47.5 49.9 49.5
N — Frame stack 59.6 59.9 59.6 59.9 60 60.4 60.5 60.8 61.9 62.2
Sizes:
SizeRider HeightInseam
Small 155 - 165 cm
5'1" - 5'5"
74 - 78 cm
29" - 31"
Medium 165 - 176 cm
5'5" - 5'9"
79 - 83 cm
31" - 33"
Medium/Large 173 - 180 cm
5'8" - 5'11"
81 - 86 cm
32" - 34"
Large 177 - 188 cm
5'10" - 6'2"
84 - 89 cm
33" - 35"
X-Large 188 - 195 cm
6'2" - 6'5"
89 - 91 cm
35" - 36"
XXX-Large 195 - 203 cm
6'5" - 6'8"
91 - 97 cm
36" - 38"

Specs

Fork Fox Factory 34, Float EVOL air spring, GRIP2 damper, tapered steerer, 44mm offset, Kashima Coat, Boost110, 15mm Kabolt axle, 130mm travel
Chain Shimano Dura-Ace/XTR M9100, 12 speed
Frame OCLV Mountain Carbon, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120mm travel

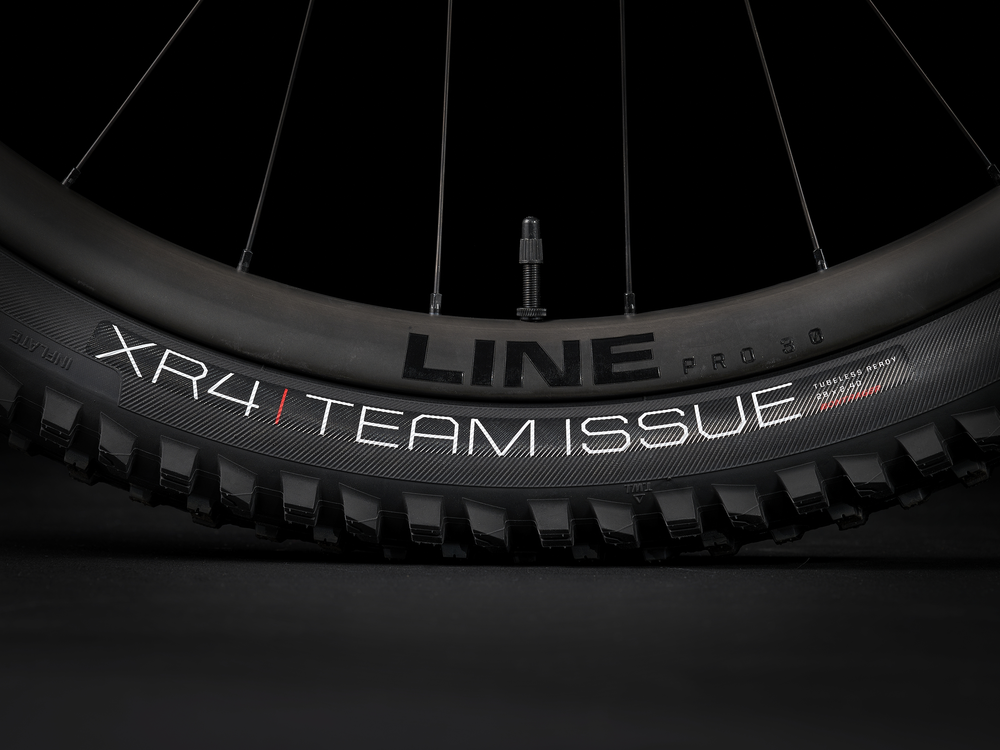

Tires Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120tpi, 29x2.40''
Brakes Shimano XTR M9100 hydraulic disc // Shimano XTR M9100 hydraulic disc
Rotors Shimano RT86, 6-bolt, 160mm // Shimano RT86, 6-bolt, 180mm
Saddle Bontrager Arvada Pro, carbon rails, 138mm width
Headset Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
Crankset E*thirteen TRS Race Carbon, 30T, 55mm chainline, 170mm length
Seatpost Bontrager Line Elite Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 485mm length
Shifters Shimano XTR M9100, 12 speed
Handlebars Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5mm handlebar rise, 820mm width, 0 degree stem rise, 45mm stem length
Rear Shock Fox Factory Float DPS, 3-position damper, open-mode adjustment, Kashima Coat, 185mm x 50mm
Tape/Grips Bontrager XR Trail Elite, nylon lock-on
Bottom Bracket E*thirteen BB20-P, BSA threaded, 73mm width
Rear Derailleur Shimano XTR M9100, Shadow Plus, long cage, 51T max cog
Cassette/Freewheel Shimano XTR M9101, 10-51, 12 speed

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Satin Baja Yellow / Medium/Large / 29-inch 601479122721 5279427 TOP29876362W
